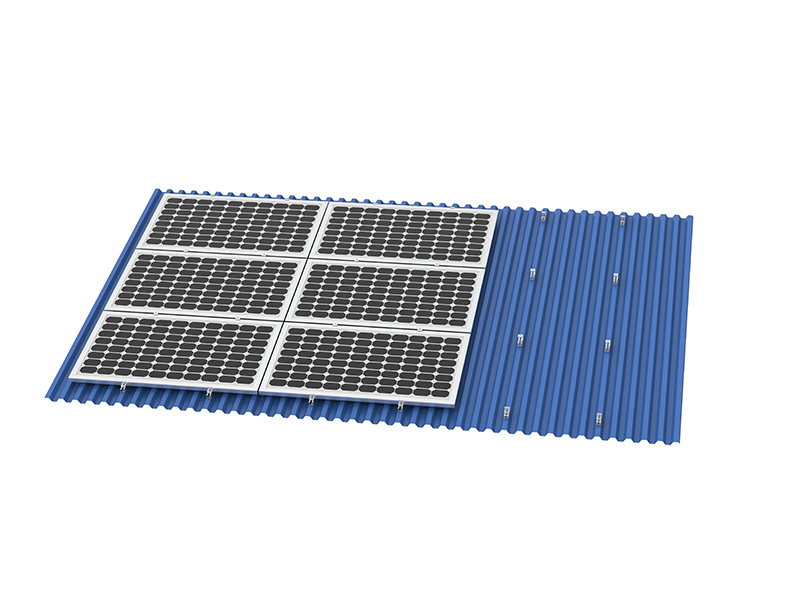

Mini Rail mounting system
    Publish time 2021-03-25 14:41
Mini Rail mounting system
Brand ZIYUAN
Wind Speed
60m/s
Material
AL6005/T5 & SUS304 & SUS410
Snow Load
1.4KN/m²
Surface Coating
Anodizing
Warranty
10years
Design Code
JIS C 8955 2017
Service Life
25years
Standard
AS/NZS 1170

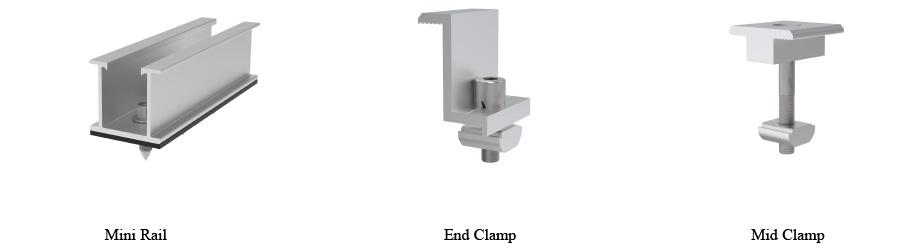

Mini Rail mounting system is a simple and cost-effective solution for trapezoid metal rooftop, the main parts are Mini Rail, Mid Clamp and End Clamp.



INSTALLATION STEPS


1.Install the Mini Rail in the correct position as planned with the self-tapping screws.
2.Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.
